Shapes
Overview

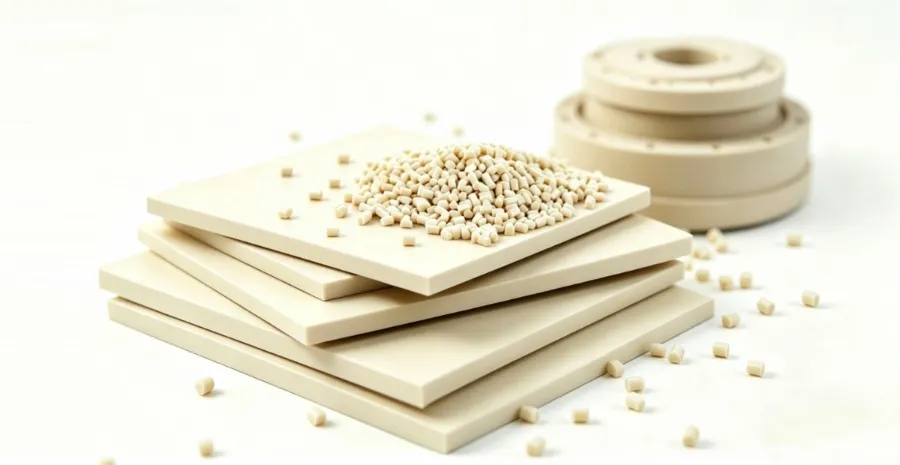

We supply a full range of PEEK semi-finished products including plates, rods, and tubes, extruded from premium raw materials. All shapes undergo strict dimensional inspection and performance testing to ensure consistent material properties and machining reliability.

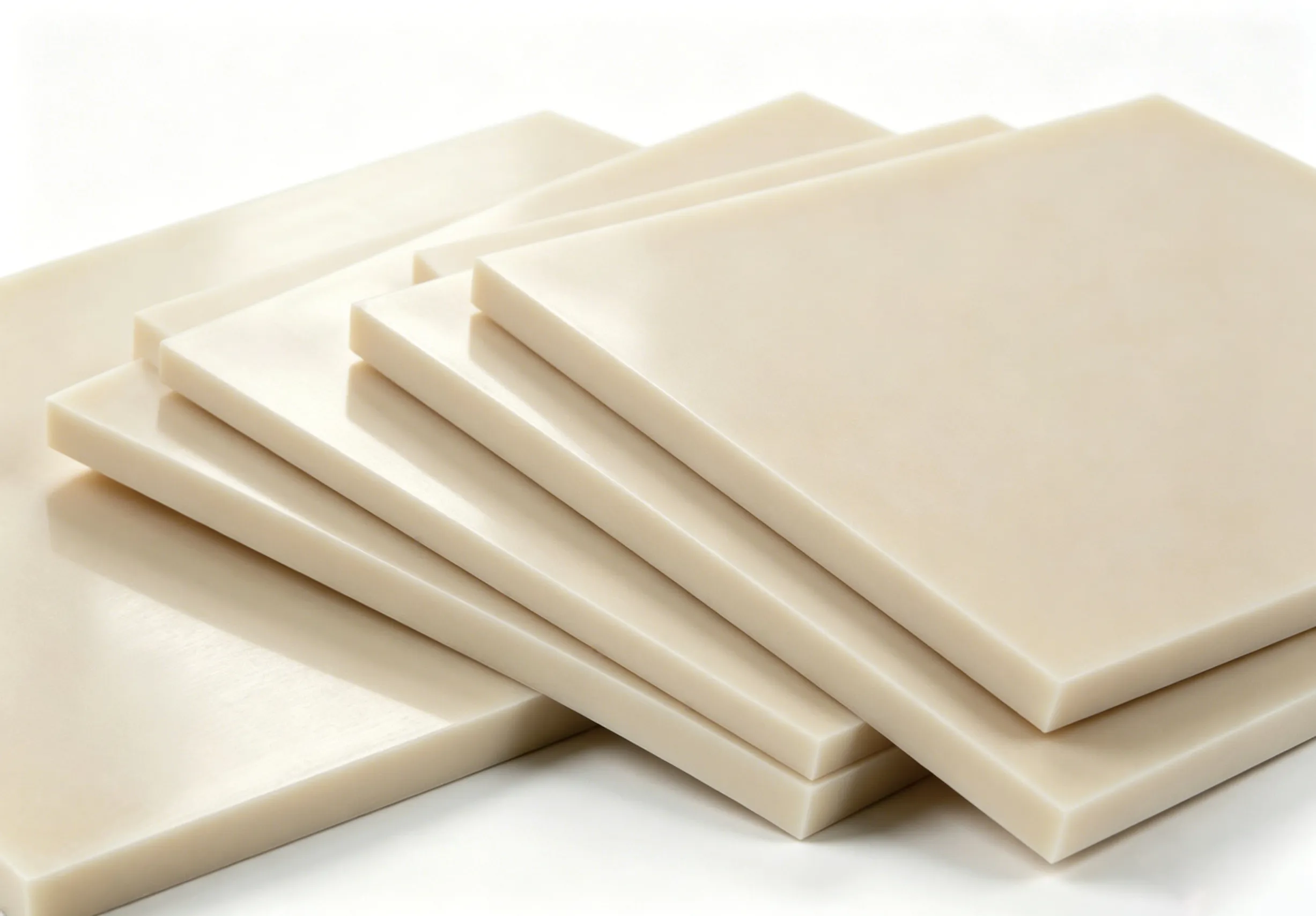

PEEK Plates
PEEK plates are extruded from premium raw materials, offering excellent mechanical strength, high-temperature resistance, and chemical corrosion resistance. With flat surfaces and uniform thickness, they are ideal for precision machining and widely used in structural and insulating components across semiconductor, medical, and aerospace industries.
| Material | Thickness(mm) | Width(mm) | Length(mm) | Color |
|---|---|---|---|---|
| PEEK | 3-100 | 600 | 1000 | Natural / Black |
| PEEK-CF30 | 10-100 | 600 | 1000 | Black |
| PEEK-GL30 | 5-50 | 600 | 1000 | Black |
| ESDPEEK | 3-20 | 600 | 1000 | Black |
PEEK Rods
PEEK rods are extruded from premium raw materials, delivering high strength, stiffness, and outstanding wear resistance. With high dimensional accuracy and stable tolerances, they are suitable for turning, milling, and other precision machining processes, widely used in bearings, seals, valves, and other precision components.
| Material | Diameter(mm) | Length(mm) | Color |
|---|---|---|---|
| PEEK | 5-200 | 1000 | Natural / Black |
| PEEK-CF30 | 8-120 | 1000 | Black |
| PEEK-GL30 | 8-120 | 1000 | Black |
| ESDPEEK | 8-130 | 1000 | Black |
| PEEK-FC30 | 15-50 | 1000 | Black |

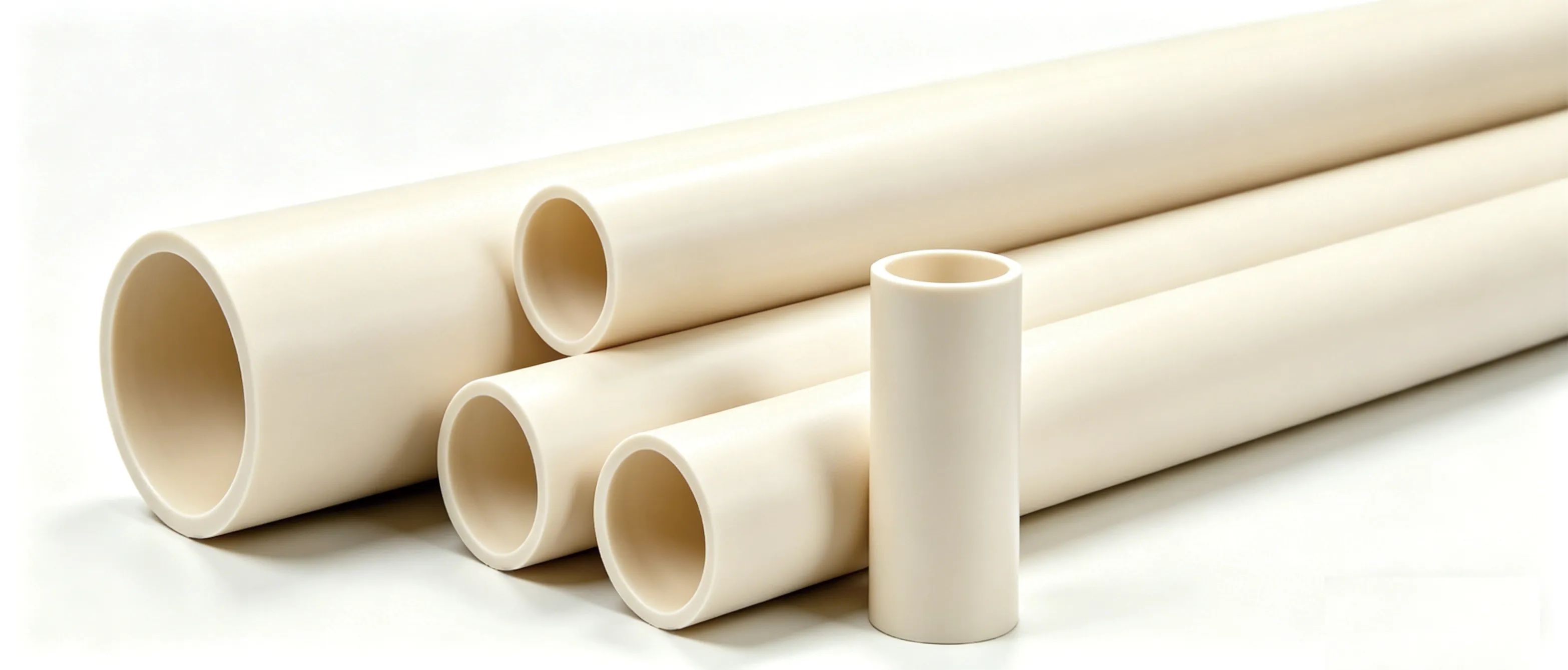

PEEK Tubes
PEEK tubes are extruded from premium raw materials, offering excellent high-temperature, high-pressure, and chemical corrosion resistance. With uniform wall thickness and stable OD/ID tolerances, they are ideal for fluid transport and insulating sleeve applications across semiconductor, chemical, and medical industries.
| Material | OD(mm) | ID(mm) | Length(mm) | Color |
|---|---|---|---|---|
| PEEK | 100 | 80 | 1000 | Natural |
| PEEK | 150 | 130 | 1000 | Natural |
| PEEK | 200 | 175 | 1000 | Natural |
| PEEK | 280 | 250 | 1000 | Natural |
| PEEK | 360 | 290 | 1000 | Natural |
For unlisted specifications and materials, please contact us for custom solutions
Capabilities
Complete Specifications
Plates, rods, and tubes covering all needs for different machining requirements
Precision Tolerances
Advanced extrusion process ensuring stable dimensional tolerances, reducing post-processing allowance
Fast Delivery
Sufficient stock for standard specifications, quick production scheduling for custom sizes
